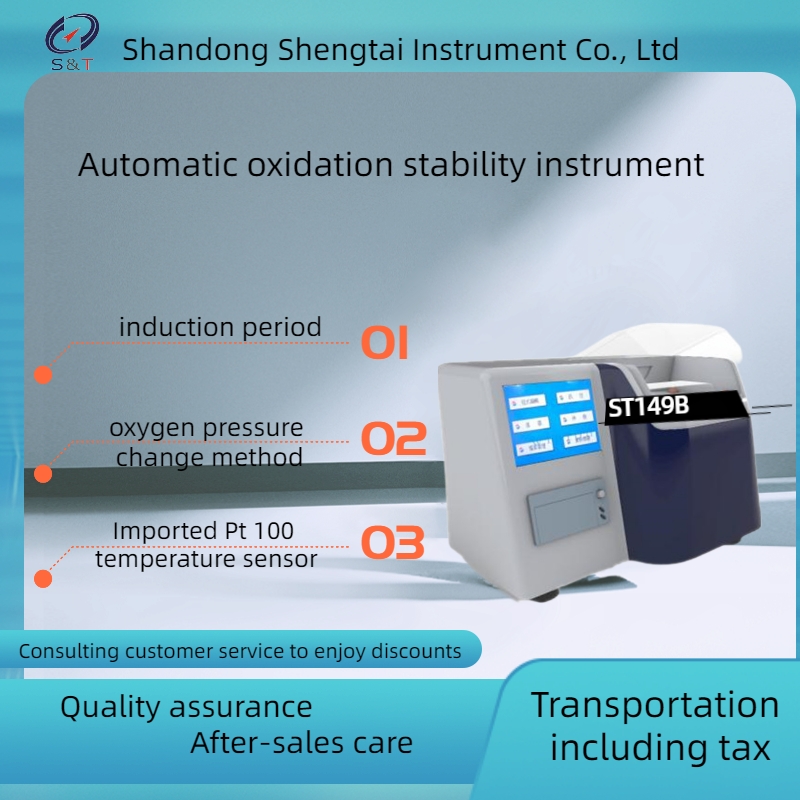

According to ST149B automatic oxidation
stability apparatus according to the food in the room temperature in a closed
condition, oxygen under the environment of no overpressure in a short time to
maintain a relatively stable, when the temperature increases pressure, the food
itself on the oxidation of oil will be weakened.
After the sample is placed in the test tank
and sealed, oxygen is pumped into the test chamber and the sample is heated. Oxygen
consumption is indicated by a decrease in pressure .Measurements continue until
a tipping point is reached - a defined pressure drop. This result is called the
induction period (IP), which is the time between the beginning of the test and
the turning point, and it indicates the oxidation stability of the sample under
test.
This product conforms to ISO 6886:2004
"animal and vegetable oil -- determination of oxidation stability
(accelerated oxidation test)", this instrument automatically records the
change of oxygen pressure in the process of food oxidation, through this method
can know the stability of food oil oxidation.
It is suitable for food containing grease,
solid or liquid, including vegetable and animal tissues. It can be directly
tested for food without the need to separate the grease.
The grease oxidation analyzer is a
universal instrument that is widely used.
★ predict shelf life, study the oxidation
stability in the process;
★ assess storage conditions;
★ evaluate packaging solutions;
★ comparison of food oxidation stability of
different formulations;
To evaluate the oxidation stability of
vegetable oils from different plant sources;
★ to evaluate the efficacy of antioxidants;
★ the oxidation stability of raw materials
and finished products related information;
★ product oxidation information: some
products are slow oxidation, is not visible, especially for low fat content
(4-5%) products.
Performance characteristics
1. Instrument display: 7-inch color touch
screen, beautiful and easy to operate
2. High degree of automation: automatic
heating and constant temperature, automatic recording of test data and
real-time display of curves.
3. Imported sensor PT100 can be used to set
the experimental temperature arbitrarily.
4. Small design volume, metal bath is free
of liquid medium.
5, simple ventilation, no need to be placed
in the fume hood, exhaust gas and odor can be simply discharged through the
plastic pipe.
6. The operation of two groups of tests can
be detected at most at the same time
7. Sample temperature sensor assembly: the
sample temperature can be measured during the test
8. Equipped with mini printer.
9, can be microcomputer storage of
experimental record data, at the same time can be U disk output data
10, with RS232,RS485, Ethernet and other
interfaces
11, connect the computer to view the
automatic operation, feedback operation records
Technical parameters:
Power supply
AC220V±10%.
Heating tube power
2500W.
Pressure sensor range
0-8bar
Temperature control range
temperature control range: room temperature ~ 200.0℃
Temperature control accuracy
±0.1℃.
Instrument size
550*430*380(length, width and height)
Weigh
30KG
